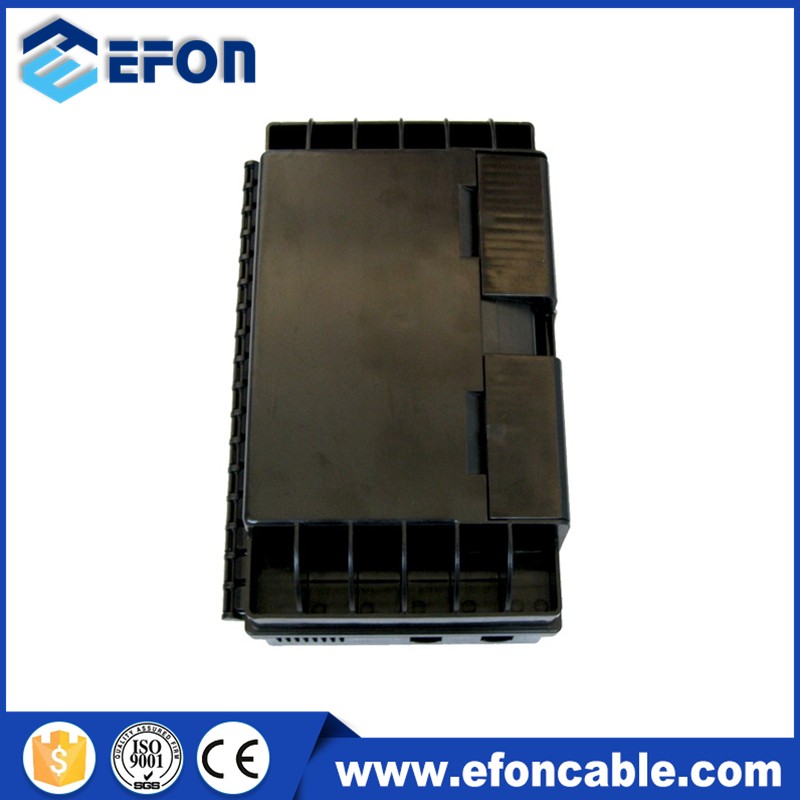

FTTH-S003 FTTx Aerial Optic Splice Closure
EFON FTTH-S003 Splice Closures are designed for aerial and wall mount installation, especially for distribution point. Combination with 1*8, 1*16 PLCsplitter and fiber cable realize simple FTTx network construction
Send Inquiry PDF Download- Description
Description
Specifications
Packing
Features:

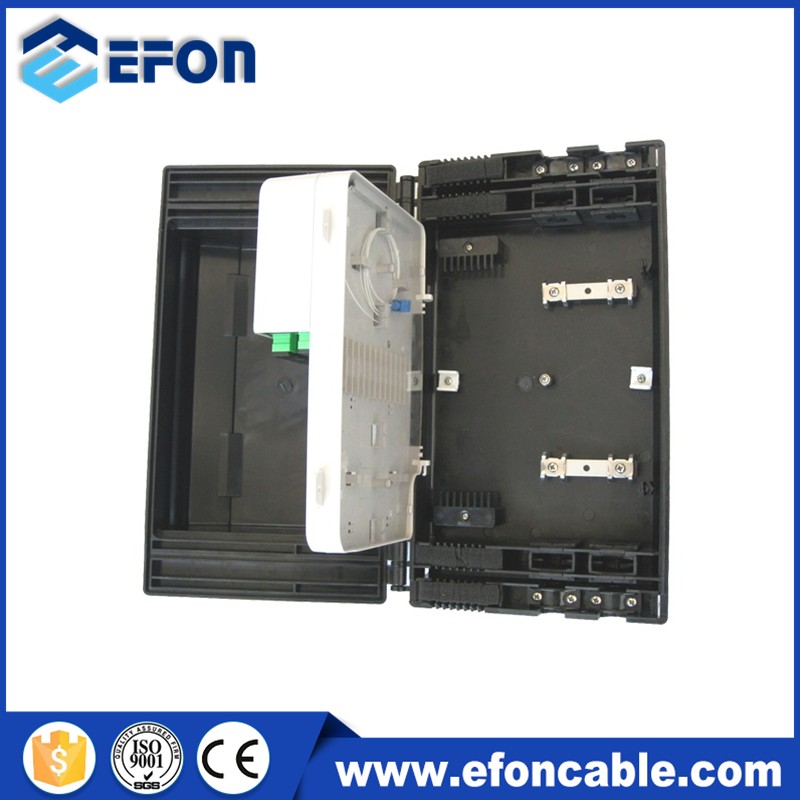

It can be installed two 1:8 PLC splitter.(FTTH-S003-08), or installed one 1:16 PLC splitter. (FTTH-S003-16)
Small size and light weight.
Suitable for drop cable and indoor cable distribution.

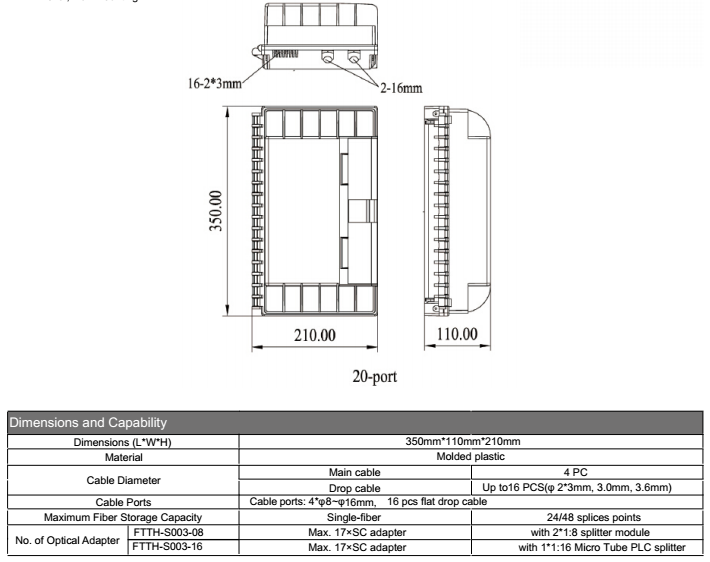

Cable ports: 4*φ8~φ16mm and 16 pcs drop cable(φ 2*3mm, 3.0mm, 3.6mm).
24 Cores fusing splice, max 48 Cores.
Can accommodate up to 16 drop cables in two direction.
Aerial, wall-mounting.
Applications:
Aerial, Wall Mount, Pole Mount.
FTTX, access networks and broadband
It can be installed two 1:8 PLC splitter.(FTTH-S003-08), or installed one 1:16 PLC splitter. (FTTH-S003-16)
Small size and light weight.
Suitable for drop cable and indoor cable distribution.
Cable ports: 4*φ8~φ16mm and 16 pcs drop cable(φ 2*3mm, 3.0mm, 3.6mm).
24 Cores fusing splice, max 48 Cores.
Can accommodate up to 16 drop cables in two direction.
Aerial, wall-mounting.
Applications:
Aerial, Wall Mount, Pole Mount.
FTTX, access networks and broadband
