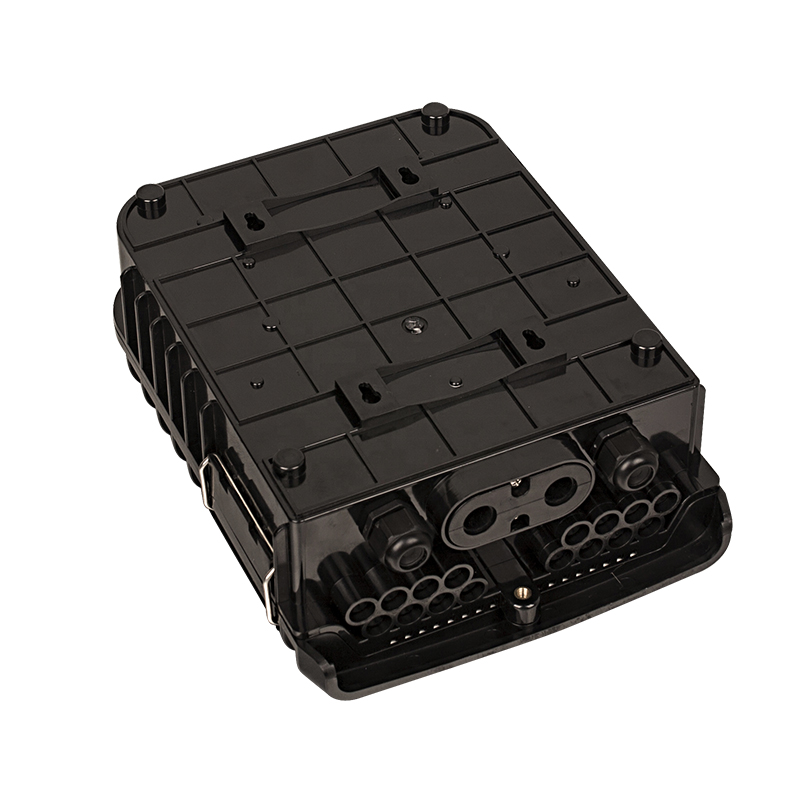

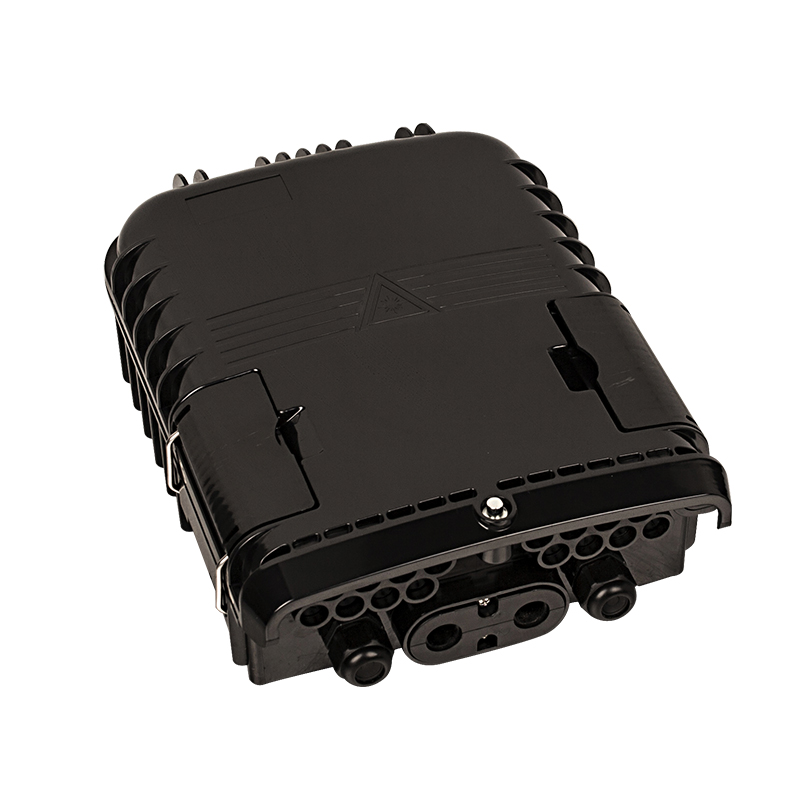

EFON FDB-16F-c Fiber Optic Distribution Box

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.

Send Inquiry PDF Download
  • Description

Description

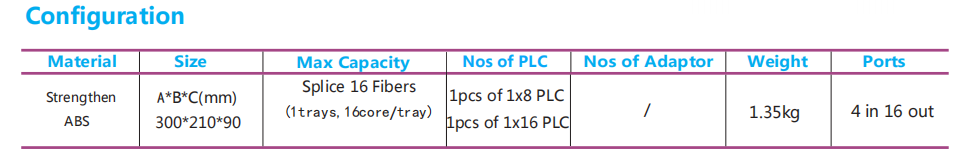

Specifications

Packing

Feature

1.Total enclosed structure.

2.Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.

4 .Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.

5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

6.Box can be installed by the way of wall-mounted or poledmounted,suitable for both indoor and outdoor uses.
