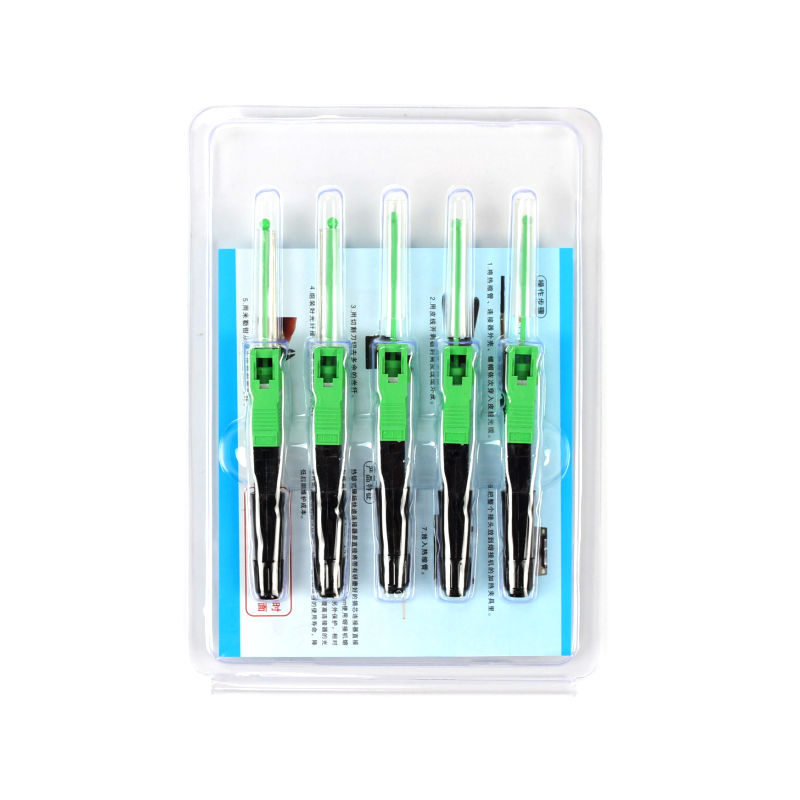

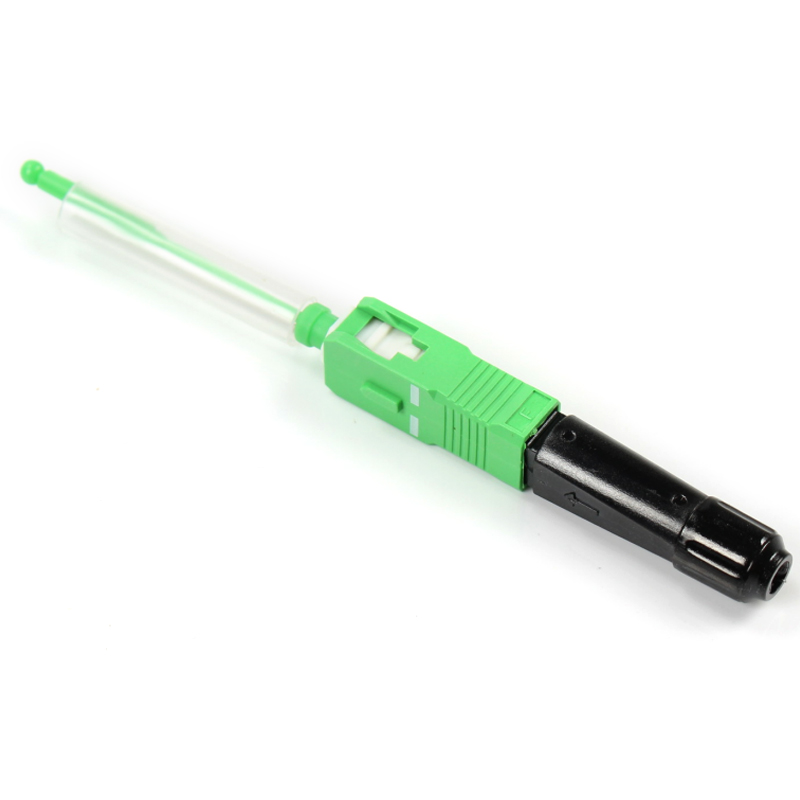

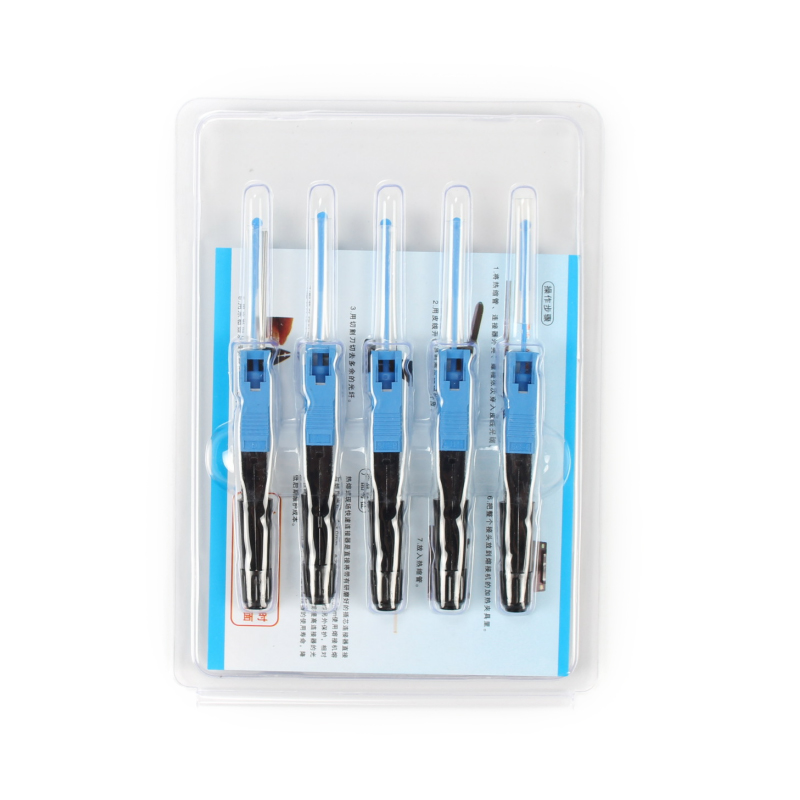

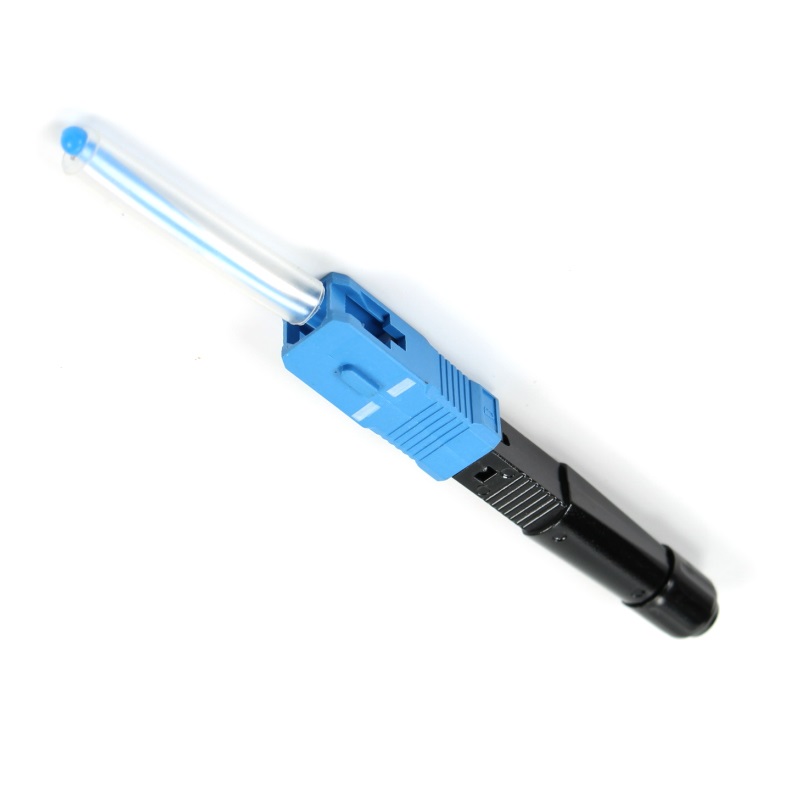

Fusion Splice FAST CONNECTOR

Features

Compatible with standard SC connectors;

Field installable, cost effective, user friendly;

PC, APC polishing optional;

No electricity required;

FTTH cable, fiber optic cable optional;

Reliable durable and superior optical performance

Low insertion loss and high return loss

Stable capability and high reliability

Excellent mechanical capability

Highlights

No-epoxy/no-polish or other consumables required;

Quick and easy installation, less than one minute per connector on average ;

100 percent factory tested for insertion loss;

Typical insertion loss of 0.2 dB for UPC and 0.3 dB for APC connectors;

Factory-polished end face Low insertion loss and high-performance return loss;

Reliable, proven mechanical splice technology Over 70 million connectors deployed in various applications;

No need for electrical power for ovens or lights Reduces complexity;

Angled Fiber Stub Inside all EFON connectors regardless of polish to maximize back reflection performance;

Technical Sepcificationsechnical Specifications
