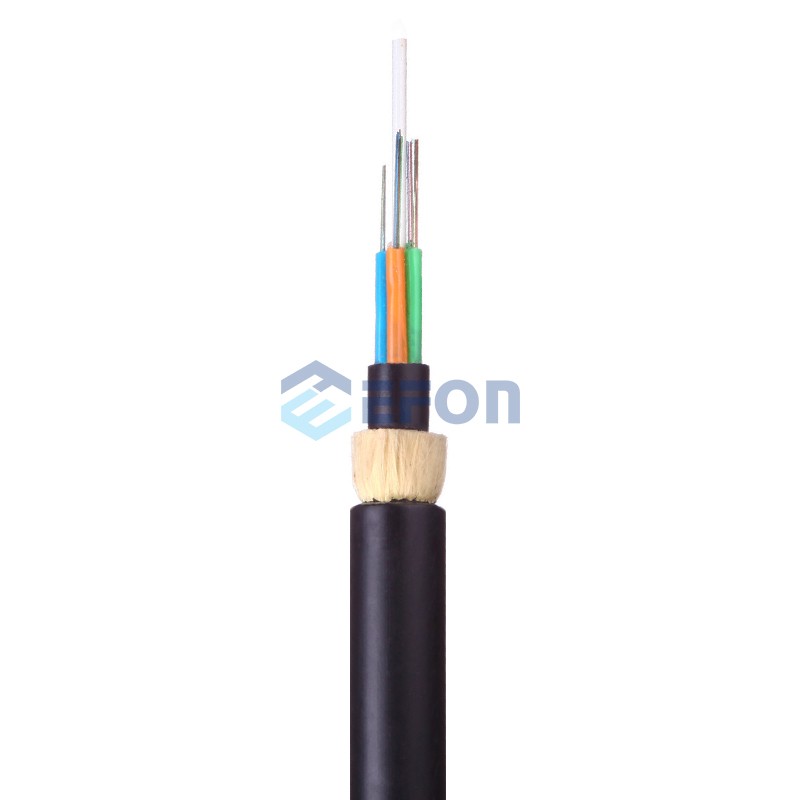

ADSS Double Jacket All Dielectric Self Supported Aerial Cable

ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. As it's name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fber optic network. EFON manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred.


Send Inquiry PDF Download
  • Description

Description

Specifications

Packing

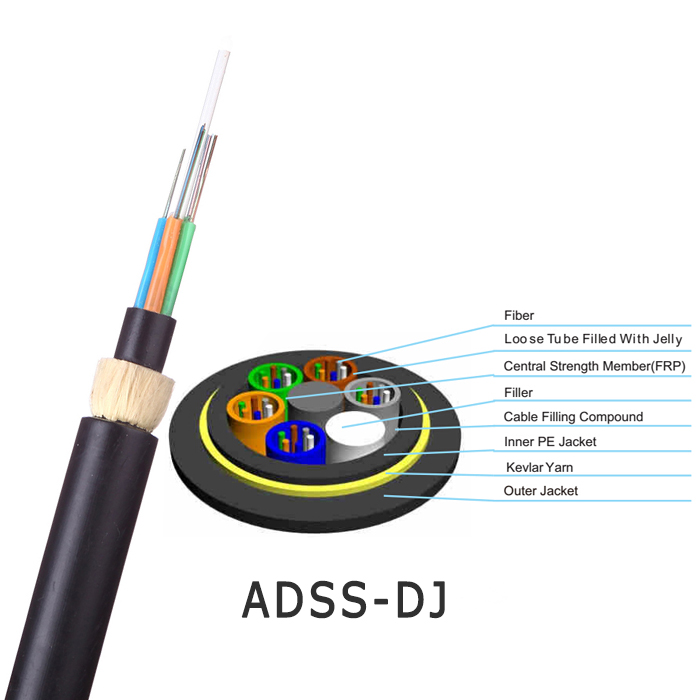

Product Construction

Fiber:250µm colored fiber 2-288fibers
Fiberglass reinforced plastic (FRP)
Aramid yarn strength member
Outer Jacket: Black UV and waterproof polyethylene (PE)


Features
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provides high tensile strength.


Applications
Inter building voice or data communication backbones.
Installed as aerial/lashed, ducts, underground conduits.
For overhead power lines under 110kV, PE outer sheath is applied.
For power lines equal to or over 110kV, AT outer sheath is applied.
.
