LC Pigtail

The EFON brand of fiber cable assemblies range covers both single mode and multimode patch cords and pigtails . Fiber Optic Pigtails are utilized to achieve accurate mounting for precision alignment of fiber optical components. Assemblies are available in all major fiber optic connector types; a range of cable color options available.

Send Inquiry PDF Download
  • Description

Description

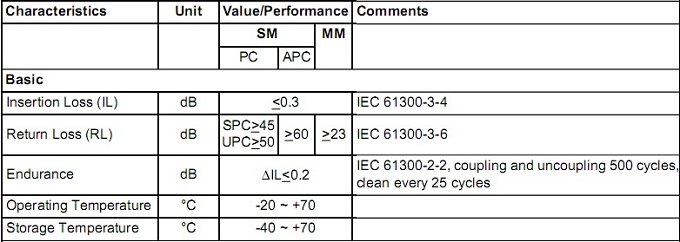

Specifications

Packing

Features
Low insertion loss, high return loss;
High environmental stability;
Available fiber cable diameters: Φ0.9, Φ2.0, Φ3.0mm;
Simplex, duplex or multi-fiber
Pigtail Types: Bundle, Ribbon, Waterproof; Armored
Connector Types: LC, FC, SC, ST, MU, MTRJ, E2000, MPO, MTP
Fiber cores: Simplex, Duplex, 4 fibers, 6 fibers, 8 fibers, 12 fibers, 24fibers, 48fibers etc.
Fiber Mode: Singlemode (G.652), Multimode (OM1/OM2/OM3/OM4)
Low insertion loss and back reflection loss
Good exchangeability; Good Durability
High temperature stability
Compliant to IEC, TIA/EIA, NTT and JIS specifications
