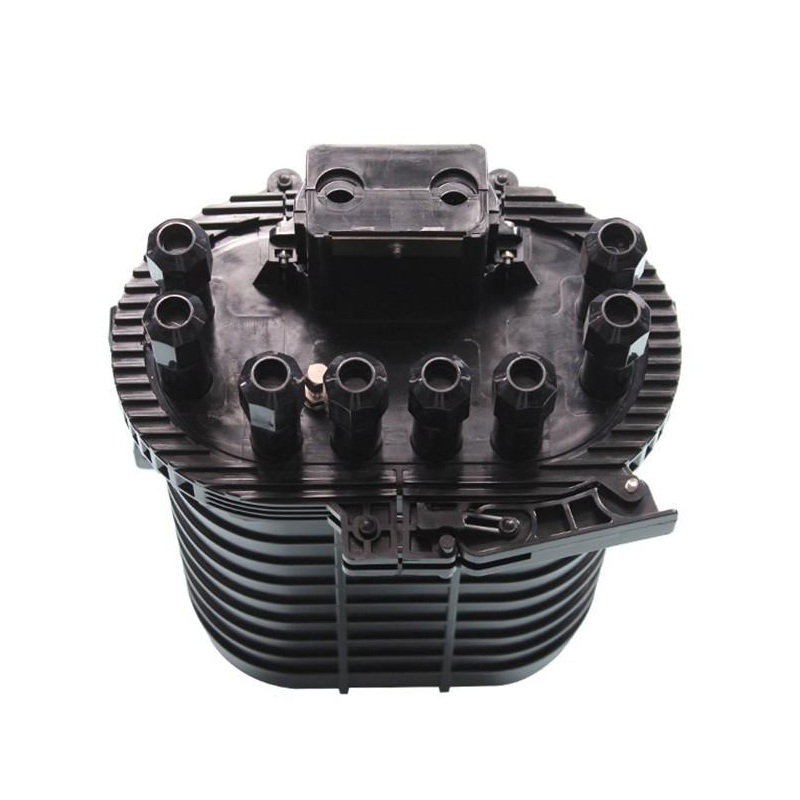

FTTH-S005 FTTx Dome Splice Closure

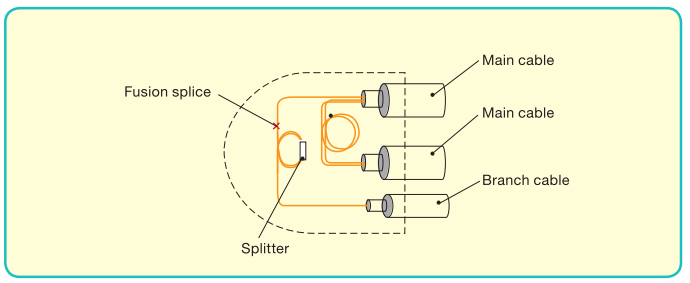

EFON FTTH-S005 Series FTTH Dome Splice Closures are designed for FTTHdrop locations where drop cables are spliced to distribution cables. IP68 protection.
Send Inquiry PDF Download- Description
Description

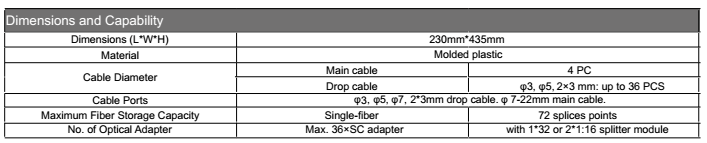

Specifications
Packing
Features:
Cable entry section is single-side dome structure which is suitable for space constrained hand holes (also possiable to be used in man-holes, telephone tunnels etc.)
Cable entry section can accommodate maximum 10 cables (main cable:2, branching cable: 8).
Fully mechanical design, fiber reinforced plastic
Concept of separate cable entries system
360- deg access permits complete access to all wirework equipment.
Applications:
Chemical and mechanical resistance for underground, aerial and pedestal installation.
Cable entry section is single-side dome structure which is suitable for space constrained hand holes (also possiable to be used in man-holes, telephone tunnels etc.)
Cable entry section can accommodate maximum 10 cables (main cable:2, branching cable: 8).
Fully mechanical design, fiber reinforced plastic
Concept of separate cable entries system
360- deg access permits complete access to all wirework equipment.
Applications:
Chemical and mechanical resistance for underground, aerial and pedestal installation.
