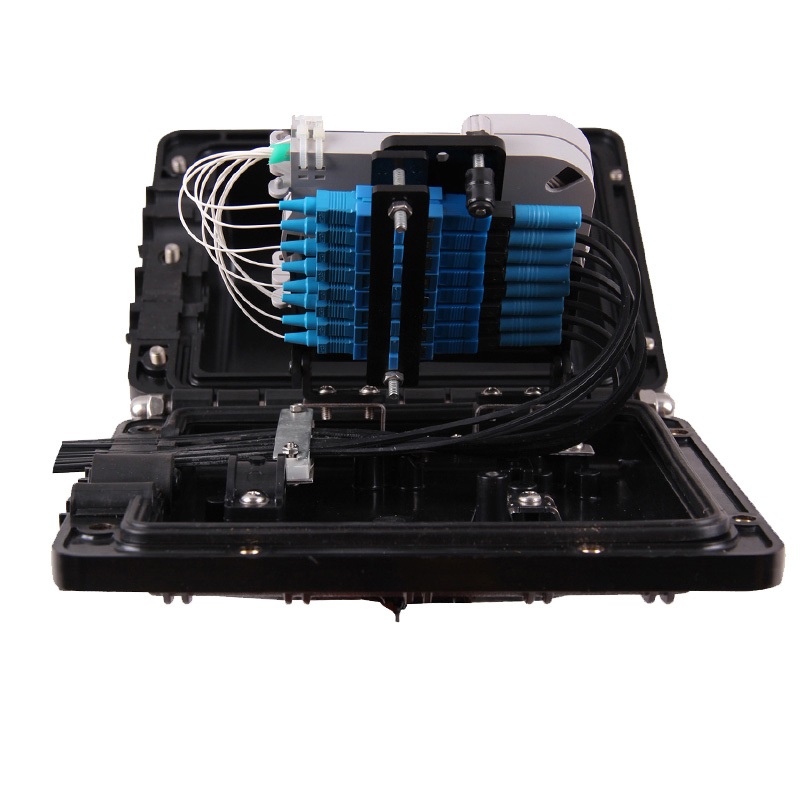

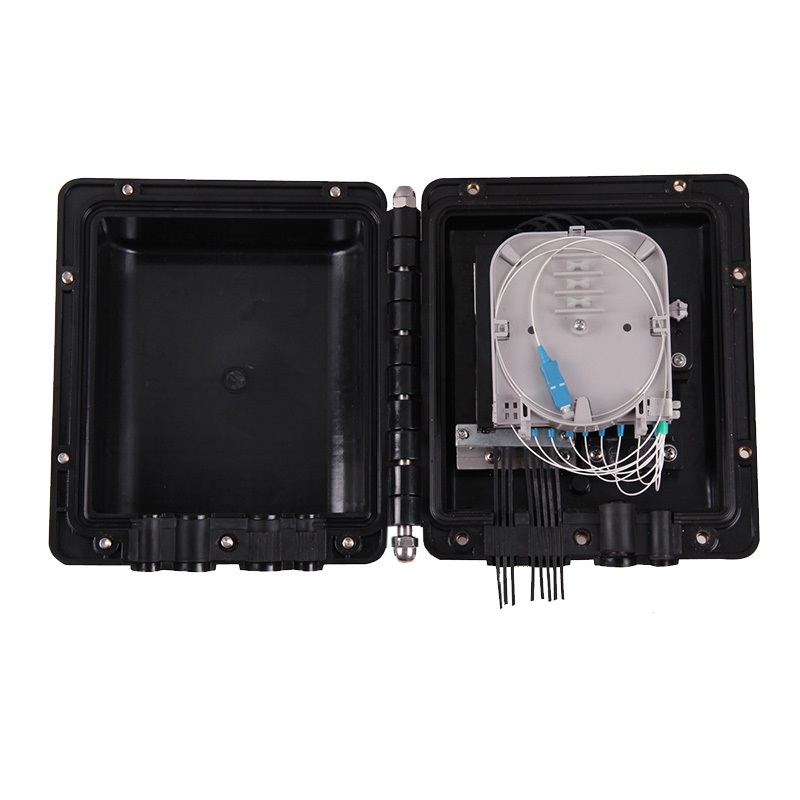

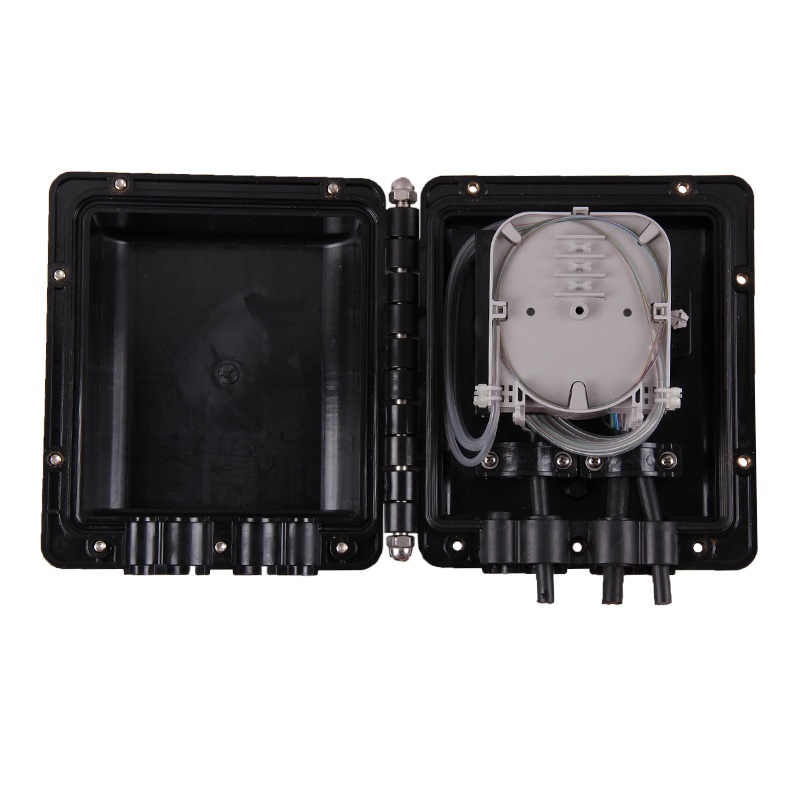

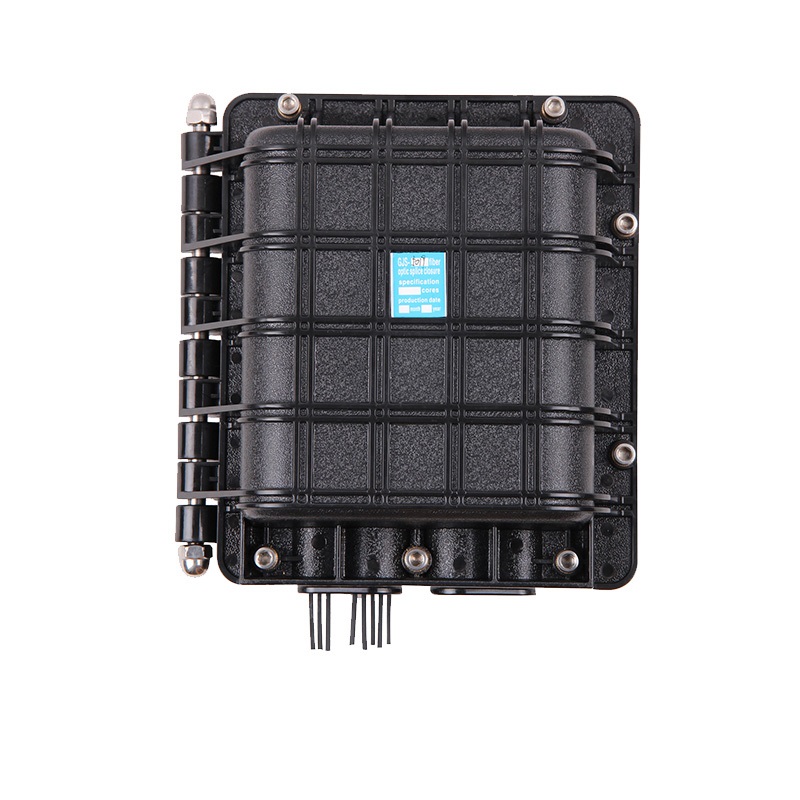

IN-LINE TYPE FIBER OPTICAL SPLICE CLOSURE H017

H017 horizontal fiber optical splice closures are not only ideal suit for the long-term use in areas with great surface temperature differences or strong UV light, but also applicable for the directly buried installation in dry areas or long-term water-free manholes. this series of closures are sealed with the wound sealing tape, so that people can just wire sealing tape to the optical cable at the access hole to increase its diameter to the size of the cable access hole, and then the airtightnessof the connector box can be ensured .

Send Inquiry PDF Download
  • Description

Description

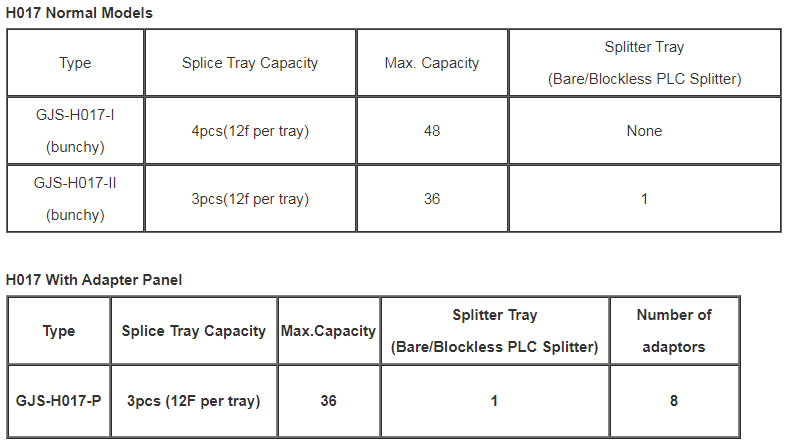

Specifications

Packing

Features
Advanced internal structure design
Easy to re-enter, it never requires re-entry tool it
The closure is spacious enough for winding and storing fibers
Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°
The curved diameter meets with international standard
Easy and fast to increase and reduce FOSTs
It is made of high-strength engineering plastic(PC), suit for temperature of -40 ~ +65℃
Good sealing structure with sealing ring and sealing tape

Applications
Suitable for bunchy fibers
Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
It's especially applicable to FTTH optical fiber distribution
