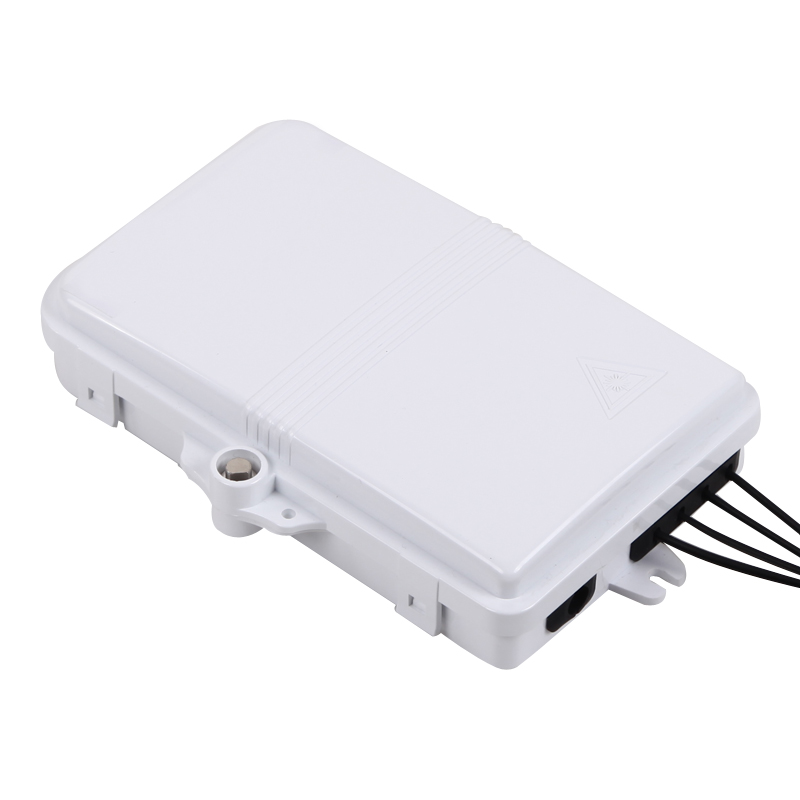

EFON FDB-4A optical distribution box

Optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Send Inquiry PDF Download
  • Description

Description

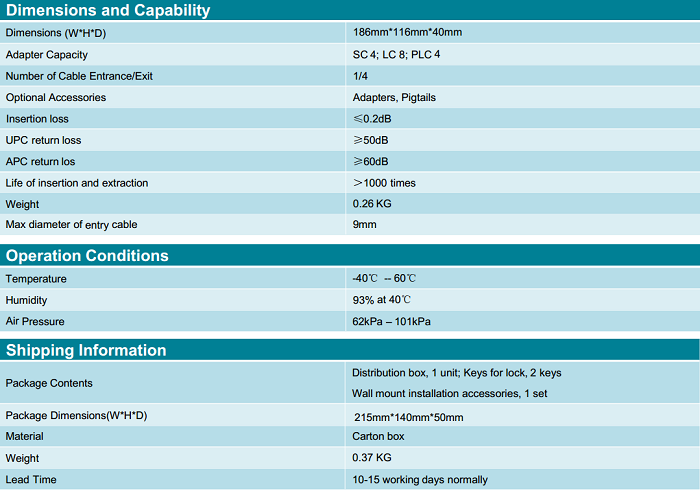

Specifications

Packing

Feature

PC+ABS material used ensures the body strong and light.
Wet-proof, water-proof, dust-proof, anti-aging.
Easy installations: Ready for wall mount – installation kits provided.
Space saving: Double-layer design for easier installation and maintenances.

Easy installations: Ready for wall mount – installation kits provided.
Protection level up to IP55.

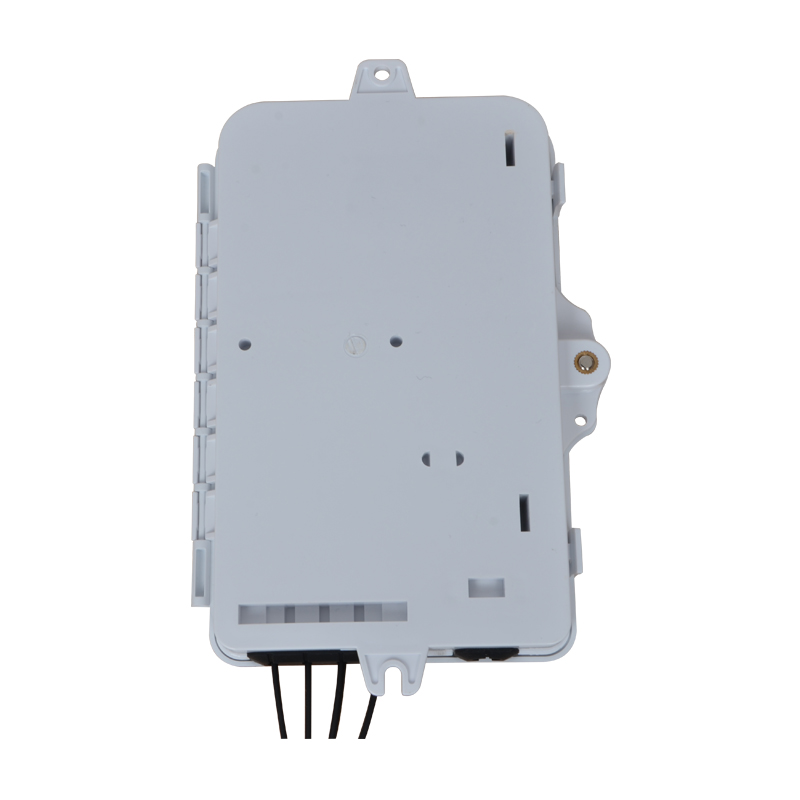

Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

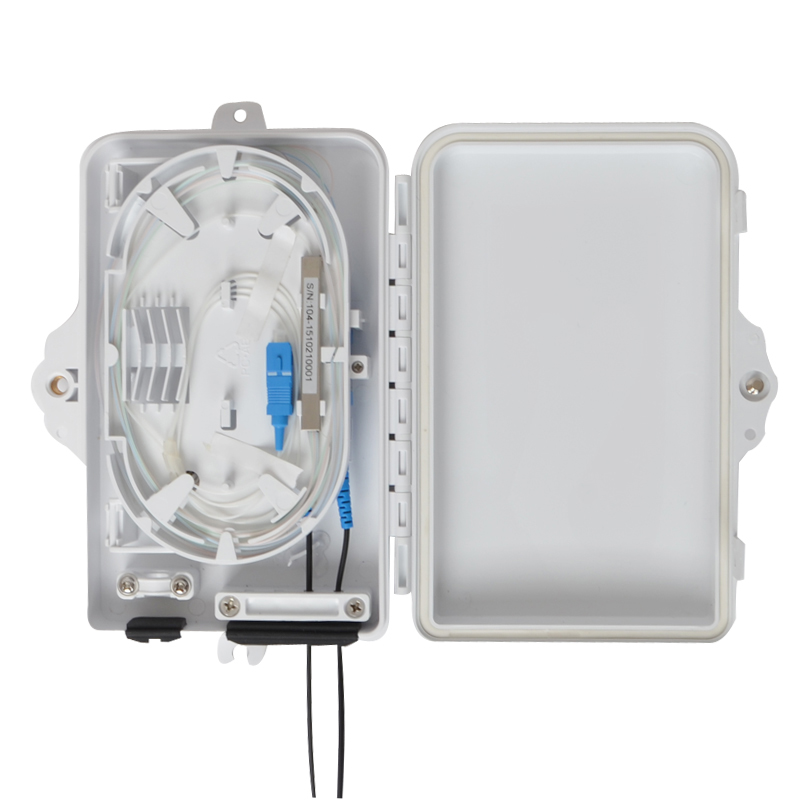

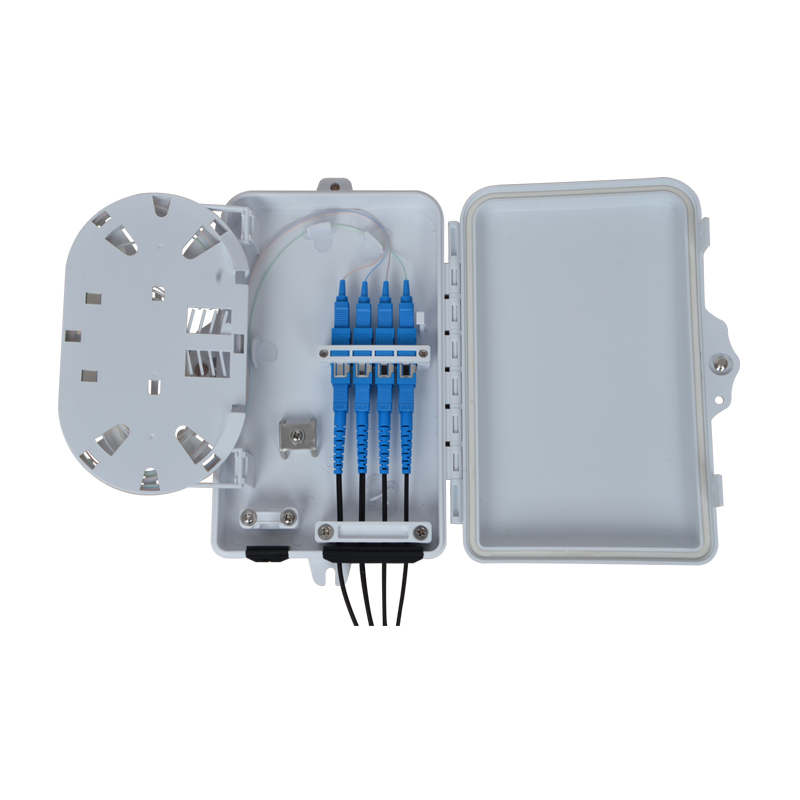

Cable,pigtailspatch cords are running through own path without disturbing each other, cassette type SC adapter or installation, easy maintenance.
