OPGW

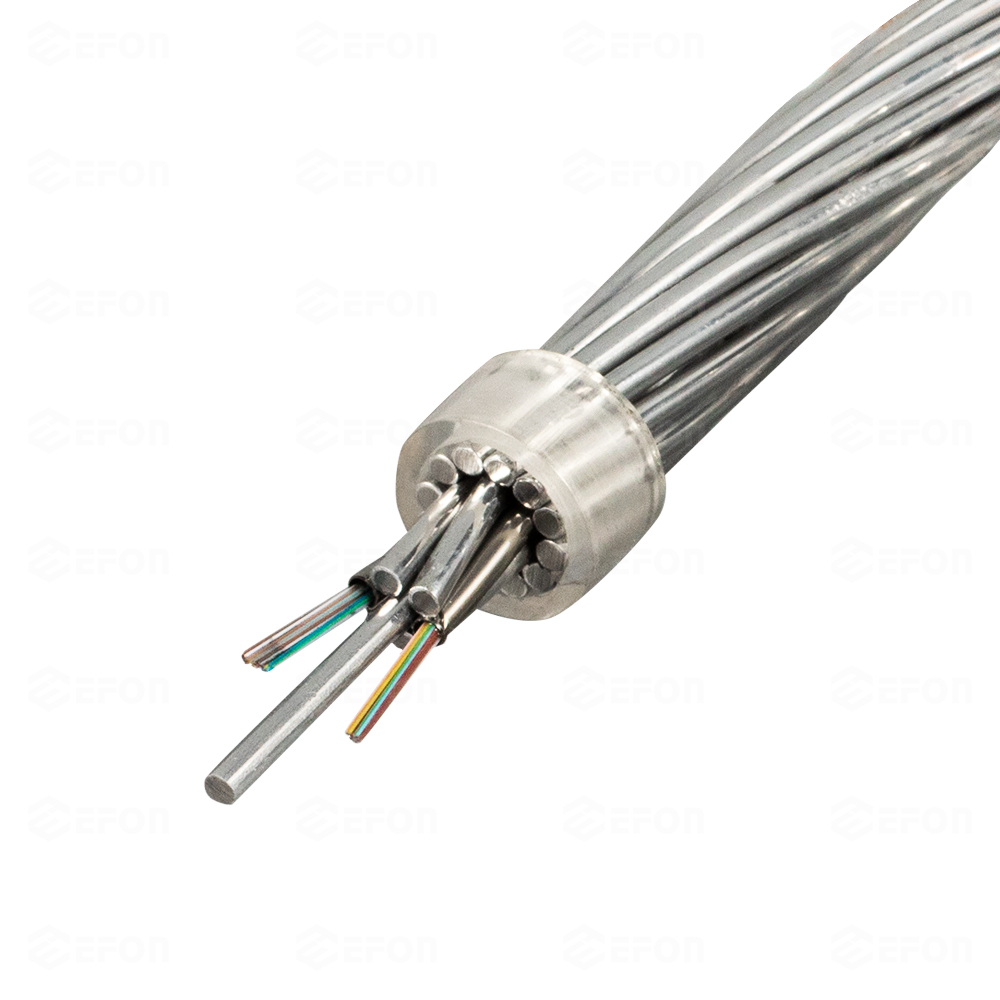

The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. This tube provides protection to the fiber during installation and operation under severe environmental conditions. Aluminium layer over the tube is optional. The stainless optical tube is located at the center of the cable protected by single or multiple layers of aluminium clad steel and aluminium annoy wires. The aluminium clad steel wires are shaped trapezoidally around the optical unit to provide compact construction. The metallic wires provide mechanical strength to withstand severe installation and operating conditions, while achieving conductivity to controltemperature rise during short circuit conditions.

Send Inquiry PDF Download
  • Description

Description

Specifications

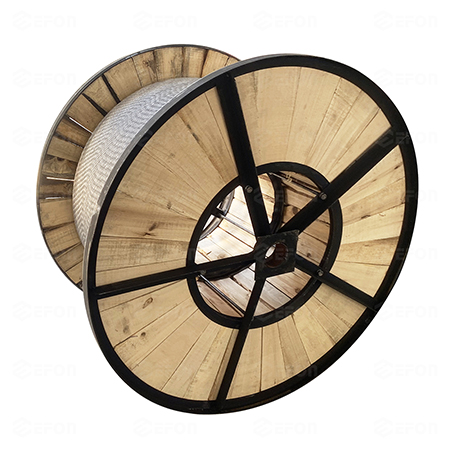

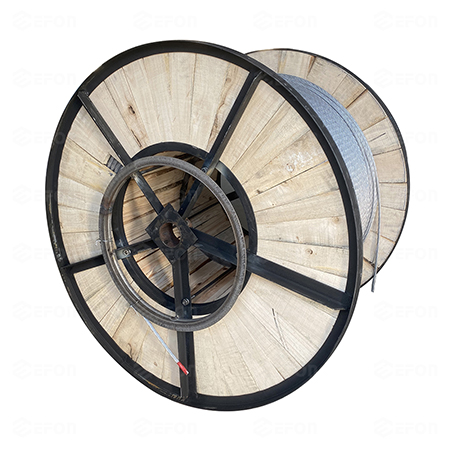

Packing


item value
Model Number OPGW
Type Outdoor Fiber Optic Cable
Model Number OPGW-stranded
Number of Conductors ≥ 10
Conductor 2-96 cores
Product name
Opgw Cable

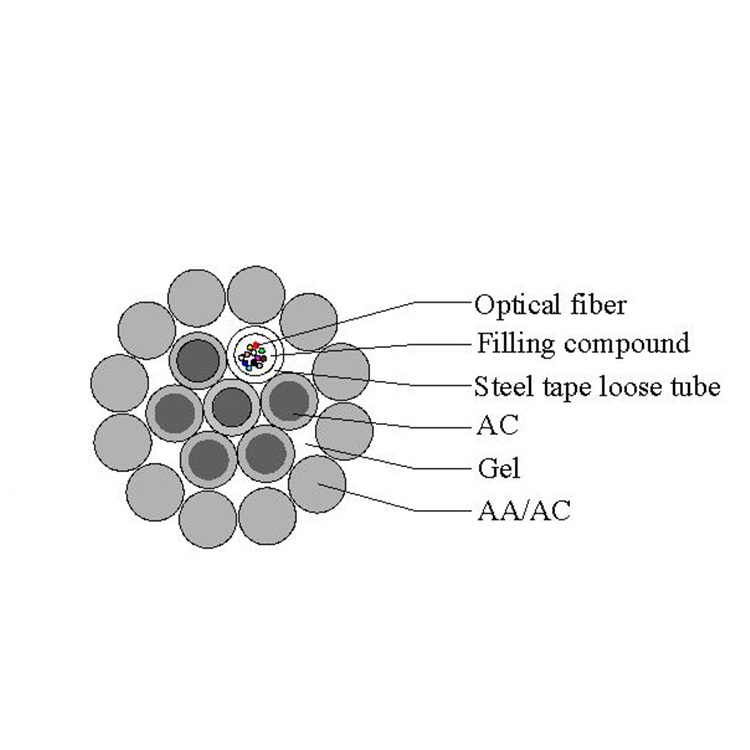

Multiple loose tube type

The fibers is placed loosely in a sealed and water resistant stainless steel tube filled with water blocking gel. Two or three
stainless steel optical tubes are helically stranded in the inner layer of a multiple-layer strandard cable. The multiple loose
tube type is designed mostly for very high fiber count requirement over 48 with the maximum fiber count reaching 144. The multiple loose tube type can meet the requirement of huge cross and large current capacity.
