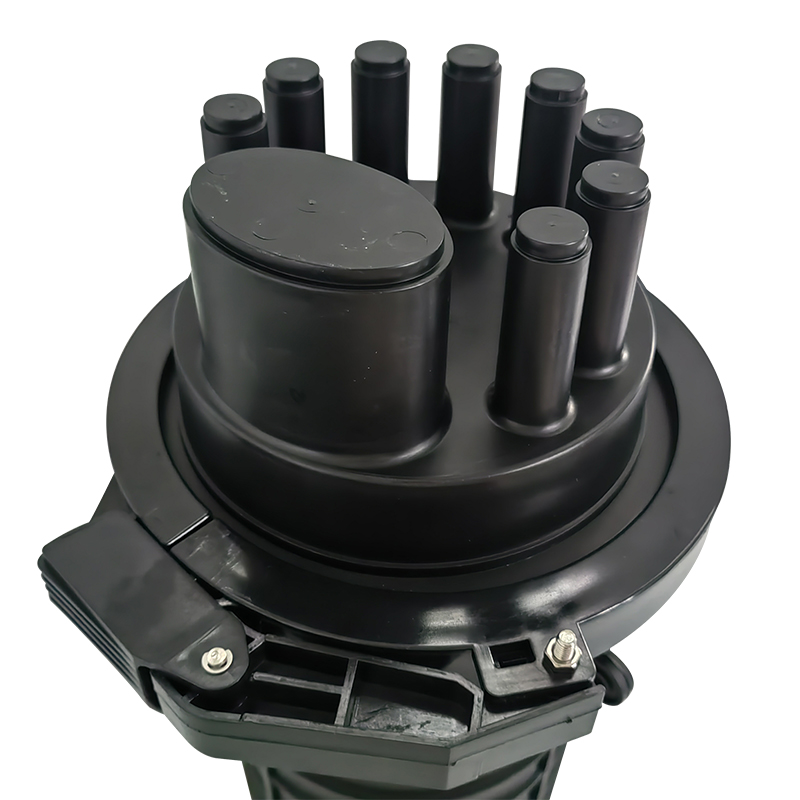

D021 DOME SPLICE CLOSURE

D021 dome heat shrinkable fiber optical splice closures can be used for the protection of various straight-through closures and branching closures. This kind of splice closures are sealed with the heat shrinkable tube, so that people can fix and seal the optical cable by heating the fiber shrinkable tube . The heat shrinkable fiber optical splice closures can be used for buried installation, manholes, holding poles, wall hanging and overhead installation.

Send Inquiry PDF Download
  • Description

Description

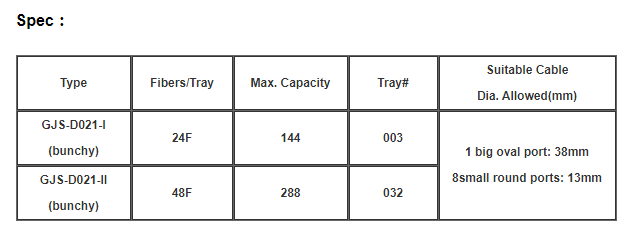

Specifications

Packing

Features
Advanced internal structure design
Easy to re-enter, it never requires re-entry tool it

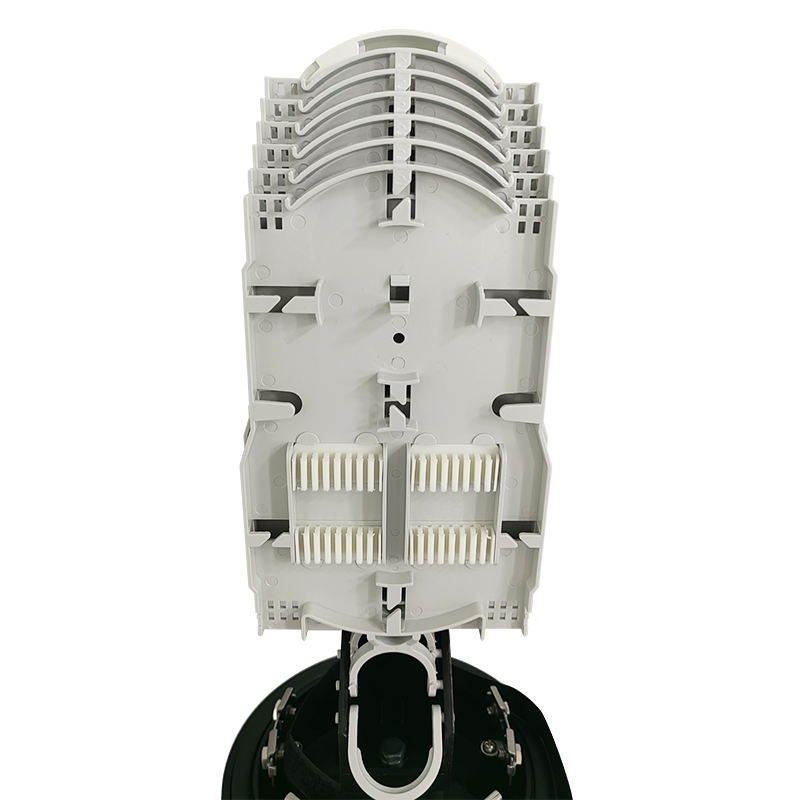

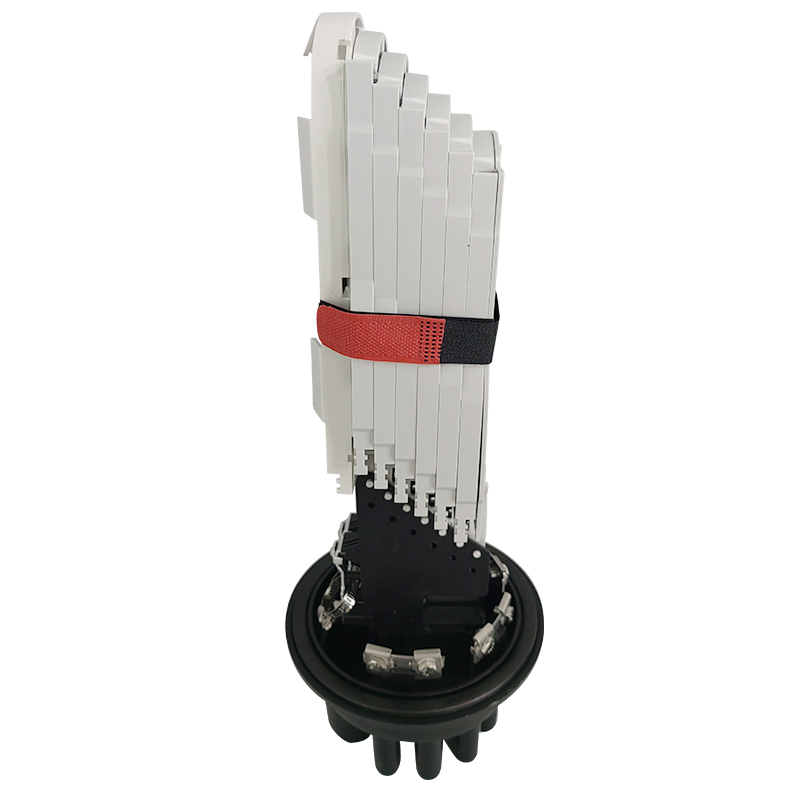

The closure is spacious enough for winding and storing fibers

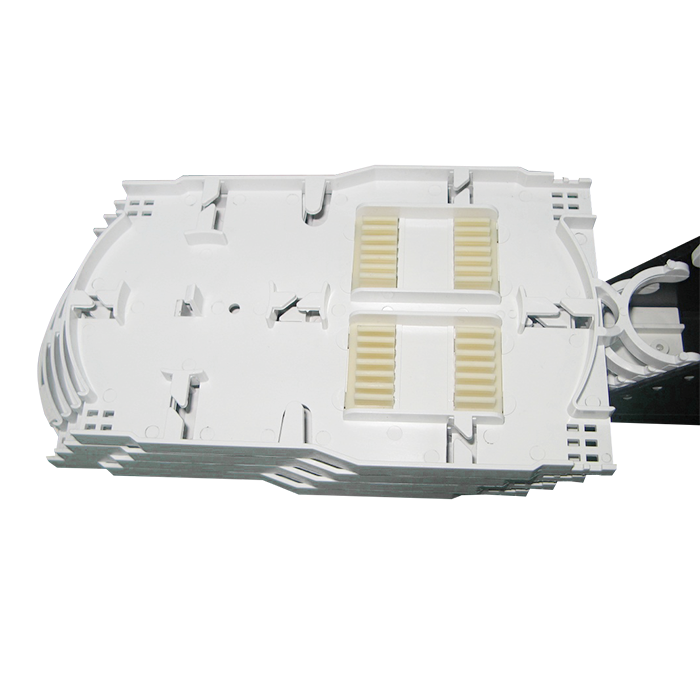

Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°
The curved diameter meets with international standard
Easy and fast to increase and reduce FOSTs
Innovative elastic intergrated seal fitting
The FOST base is provided with an oval inlet/outlet port

Applications
Suitable for bunchy fibers
Aerial, underground, wall-mounting, hand hole-mounting, pole-mounting and duct-mounting
