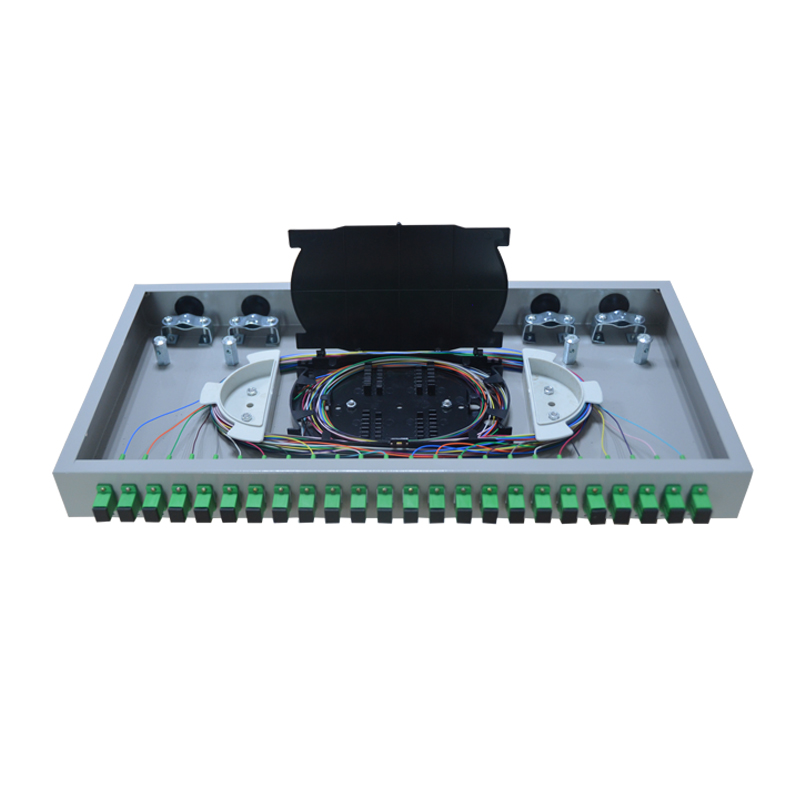

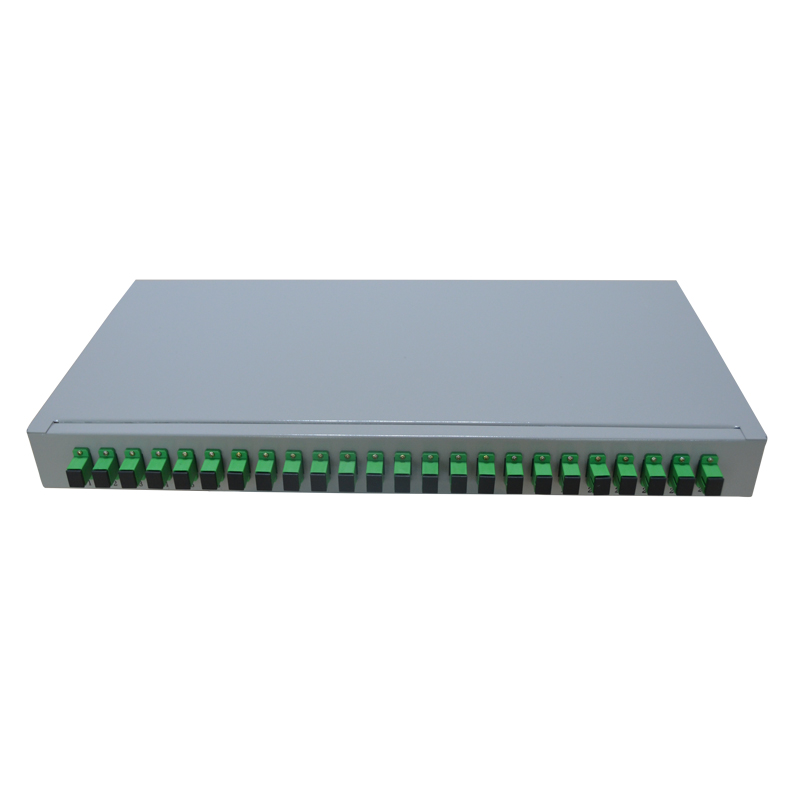

RACK MOUNT SPLICE AND TERMINATION PATCH PANEL
Rack Mount Patch Panel provides a centralized point for termination, splice, storage and distribution of optical fibers. This patch panel is suitable for central offices connection points in the OAN, data centers, local area network etc. It is an ideal solution for rack or cabinet-mounting in compact areas. This unit provides excellent fiber patching management.
- Description
Description

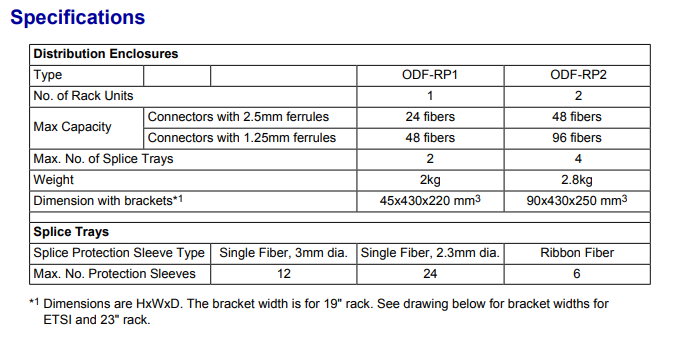

Specifications
Packing
Features
19", ETSI or 23" rack mount
Provides fiber splicing, termination, management and storage in one unit
Economical design
High density - up to 48 fibers for a 1U unit and 96 fibers for a 2U unit when LC is used
Replaceable front adapter panel
Supports single and ribbon fiber splices
Removable top cover
Made from cold-rolled carbon steel sheets
Guaranteed fiber bend radius >30mm
